Product Details:
|
| Application: | Oil Well Wireline Operation | Wire Size: | 0.092" & 0.108" |
|---|---|---|---|
| Wireline Tool Size: | 1.25" To 1.875" | Connection: | UN Thread |
| Standard: | NACE MR0175 | Working Condition: | Standard |
| Material: | Alloy Steel | Type: | Disc & Spring Type |
| Condition: | New | Product Name: | Disc & Spring Type Rope Socket |
| Highlight: | heavy duty swivel joint,slickline tools |
||
Oil Well Wireline Tools Disc & Spring Rope Socket Slickline connection
The disc and spring rope socket is one of the wireline basic tools for the oilfield wireline and slickline operation, the rope socket in disc and spring type is used to attach wireline to the tools string. In the wireline operation, the disc and spring rope socket is firmly connected to the steel wire and the tool string by the wire in the rope cap. The inside is equipped with a small spring, which is used to prevent the wire knot from being pulled out during the shock striking and buffering.
Features of the disc and spring rope socket

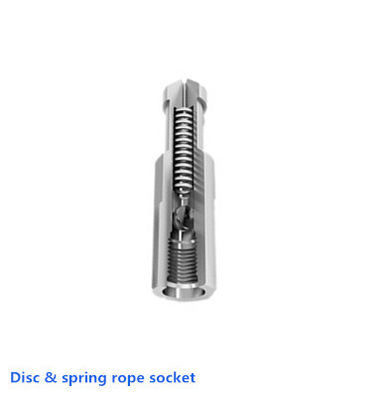

The disc and spring rope socket is composed of an external fishing neck, spring, guide and wire carrier.The wireline is passed through the rope socket body , spring and guide before being wrapped tightly around the wire carrier. The short end of the wireline is firmly wrapped around the long end using several close wraps. A clean break made close to the last wrap allows the spring and guide to pass over the wraps. The knot is then installed into the body.
Technical parameter of disc and spring rope socket
|
Tools O.D. /in |
Fishneck O.D./in |
Wire Size/ in |
Connection Type |
|
1.250 |
1.187 |
0.092 |
UN Type Q Type P |
|
1.500 |
1.375 |
||
|
1.875 |
1.750 |
Techcore Oil Tools Advantage
Techcore oil tools is certified by ISO, all the manufacture is strictly conformed with ISO system including Quality Control Management, Environmental Management and Occupational Health & Safety Management. For each downhole tools and each parts, we make the trace-ability from the raw material till the products. And any TPI inspection are available with us from SGS/BV/ TUV /DNV etc..
* Techcore insist on superior quality, strong packing & timely delivery.
*Third party inspection is available from SGS, BV, DNV etc.
* Techcore do the best to supply consideration and prompt after-sales service to guarantee for the customers' benefits
* Techcore supply the cost effect products with 12 months guarantee
* Techcore insist on the traceability of downhole tools and the related parts.
* From the raw material to the finished products to meet on requirements of onshore and offshore standards.
Welcome to contact us for information about the downhole tools
